Ultimate Engineering Guide Heavy Duty Telescoping Flagpoles
When you invest in a premium telescoping flagpole to display the American flag or your military branch colors, you are making a permanent statement of deep pride, history, and structural stability.
Many flagpoles on the open market look perfectly decent on a calm, sunny day, but the true test of architectural engineering happens when the weather shifts, the coastal storm warnings are issued, and the wind begins to howl.
Lighter residential flagpoles may be more vulnerable to bending or joint damage during severe winds, especially when their materials, dimensions, installation, or flag load are not suited to the conditions.
This guide brings clarity to the engineering behind a heavy-duty telescoping flagpole, including wall thickness, base diameter, section design, aluminum grade, coastal construction, and warranty coverage, so you can compare systems using facts instead of marketing claims.
How Wall Thickness Affects Flagpole Longevity
Wall thickness is one of the major factors that affects how an aluminum flagpole responds to bending forces and lateral wind loads. Overall performance also depends on the alloy, temper, tube diameter, section overlap, joint design, installation, and the size and number of flags being flown.
Nominal aluminum gauge charts list 16-gauge material at 0.0508 inches, or about 1.29 millimeters. Actual finished tubing can vary by manufacturing specification, so the pole manufacturer’s documented wall dimensions remain the controlling measurement.
Compared with thicker material of the same alloy and general profile, a thinner wall contains less aluminum to resist bending forces. Wind performance still depends on the complete pole design, not gauge alone.
The documented 10-gauge construction used in these heavy-duty systems has a nominal thickness of 0.1019 inches, or about 2.59 millimeters.
At the nominal gauge values, 10-gauge aluminum is almost twice as thick as 16-gauge aluminum: 0.1019 inches compared with 0.0508 inches. The aluminum density does not change; the thicker wall simply places more material in the tube profile.
That additional wall thickness can improve rigidity and resistance to bending when considered together with the pole’s alloy, diameter, five-section overlap, joints, foundation, and installation.
Nominal Aluminum Gauge Thickness Comparison
- 10 Gauge: 0.1019 Inches (2.59 Millimeters)
- 12 Gauge: 0.0808 Inches (2.05 Millimeters)
- 16 Gauge: 0.0508 Inches (1.29 Millimeters)
The difference between 12 and 10 gauge is about 0.021 inches. Although that is roughly the thickness of a heavy fingernail, the added material can meaningfully increase rigidity in a properly engineered structural profile.
Two nominal 16-gauge thicknesses total approximately 0.1016 inches, which is very close to one nominal 10-gauge thickness of 0.1019 inches.
Why Base Diameter is the Foundation of Structural Stability
A flag line acts as a long, high-leverage arm when heavy outdoor wind catches the rugged fabric of multiple large flags simultaneously.
Wind loads create substantial bending forces near the lower portion of a flagpole, where the pole transfers those forces into the ground sleeve and foundation.
Some residential telescoping poles use base diameters in the 2-inch to 2.5-inch range. Base diameter is one useful comparison point, although alloy, wall thickness, section overlap, foundation, and installation also affect performance.
All else being equal, a larger-diameter tube can offer greater resistance to bending than a smaller-diameter tube, but no single dimension determines a pole’s wind performance.
The Superior 2 systems described in this guide use a documented 3.5-inch outer base diameter.
That larger base profile contributes to lower-section rigidity when combined with the pole’s 10-gauge wall, five-section design, ground sleeve, foundation, and correct installation.
Engineering Behind a Seamless 5-Section Configuration
Telescoping flagpoles rely entirely on a system of nested interlocking joints to extend and retract smoothly whenever you need to adjust your flags or bring the system down for maintenance.
Some telescoping poles use four sections, while the systems described here use five. The number of sections affects the diameter transitions, overlap, and flex pattern of the extended pole.
Larger transitions between sections can change how an extended pole flexes in the wind, which is why section diameter, wall thickness, overlap, and joint design should be evaluated together.
The heavy-duty systems described in this guide use a five-section telescoping configuration.
Five sections allow more gradual diameter transitions across the pole’s height and create multiple nested overlap points when fully extended.
Those overlaps help distribute bending forces through the pole. Smooth operation still depends on correct assembly, clean components, working locking mechanisms, appropriate loading, and routine inspection.
Understanding 7000-T8 Aluminum Strength
The specific type of aluminum alloy and temper used during production influences the material strength, hardness, and long-term performance of a flagpole.
Many aluminum products use 6000-series alloys because they offer a practical combination of strength, corrosion resistance, and manufacturability. A meaningful comparison requires the exact alloy, temper, tube dimensions, and complete pole design.
The heavy-duty and nautical telescoping flagpoles described here use documented 7000-T8 aluminum pole sections.
Zinc is the principal alloying element in many 7000-series aluminum alloys. These alloys are known for high strength-to-weight performance, although exact properties depend on the specific alloy composition and temper.
A T8 temper designation generally indicates that the aluminum was solution heat-treated, cold-worked, and artificially aged to achieve defined material properties.
The T8 process is intended to increase strength, but a valid numerical comparison requires the exact alloys, dimensions, test methods, and complete pole assemblies being compared.
Engineering Used Far Beyond Flagpoles
Heavy-duty telescoping aluminum systems are used in demanding applications far beyond residential flag displays. Similar telescoping structures support:
- Military Communications
- Antenna Systems
- Satellite Internet And Wireless Communication Equipment
- Oil And Gas Operations
- Traffic Cameras
- Surveillance Systems
- Lightning-Protection Equipment
- Amateur Radio Antenna Systems
- Weather Stations
- Wind-Speed Instruments And Weather-Monitoring Equipment
- Safety Nets And Protective Cages
- Mining Operations
These applications demonstrate why material grade, wall thickness, base diameter, section overlap, and structural rigidity matter. For flagpole owners, those same engineering priorities support a stronger, more stable display built for long-term outdoor use.
To review a complete system built around the specifications discussed in this guide, view our Heavy Duty Telescoping Flagpole Kit engineered with these exact specifications.
Engineering Specification Comparison
- 10 Gauge: Thickest of These Three
- 12 Gauge: Intermediate Thickness
- 16 Gauge: Thinnest of These Three
Use this specification breakdown to compare the documented heavy-duty system with examples of lighter residential construction. Specifications vary by manufacturer and model, so verify the exact product before purchasing:
Aluminum Alloy Grade
Armor Flagpoles Premium Systems:
Documented 7000-T8 Aluminum Pole Sections.
Lighter Residential Comparison Profile:
Some Models Use 6000-Series Aluminum; Exact Alloy and Temper Vary.
Wall Thickness Profile
Armor Flagpoles Premium Systems:
10-Gauge Nominal Wall: 0.1019 Inches (2.59 mm).
Lighter Residential Comparison Profile:
Example 16-Gauge Profile: Approximately 1.29 mm Nominal Thickness.
Outer Base Diameter
Armor Flagpoles Premium Systems:
3.5-Inch Outer Base Diameter on Superior 2 Systems.
Lighter Residential Comparison Profile:
Most Models Use Base Diameters Between 2 - 2.5 and very few use 3 Inches.
Internal Section Layout:
Armor Flagpoles Premium Systems:
Five-Section Telescoping Configuration.
Lighter Residential Comparison Profile:
Some Models Use a Four-Section Telescoping Layout.

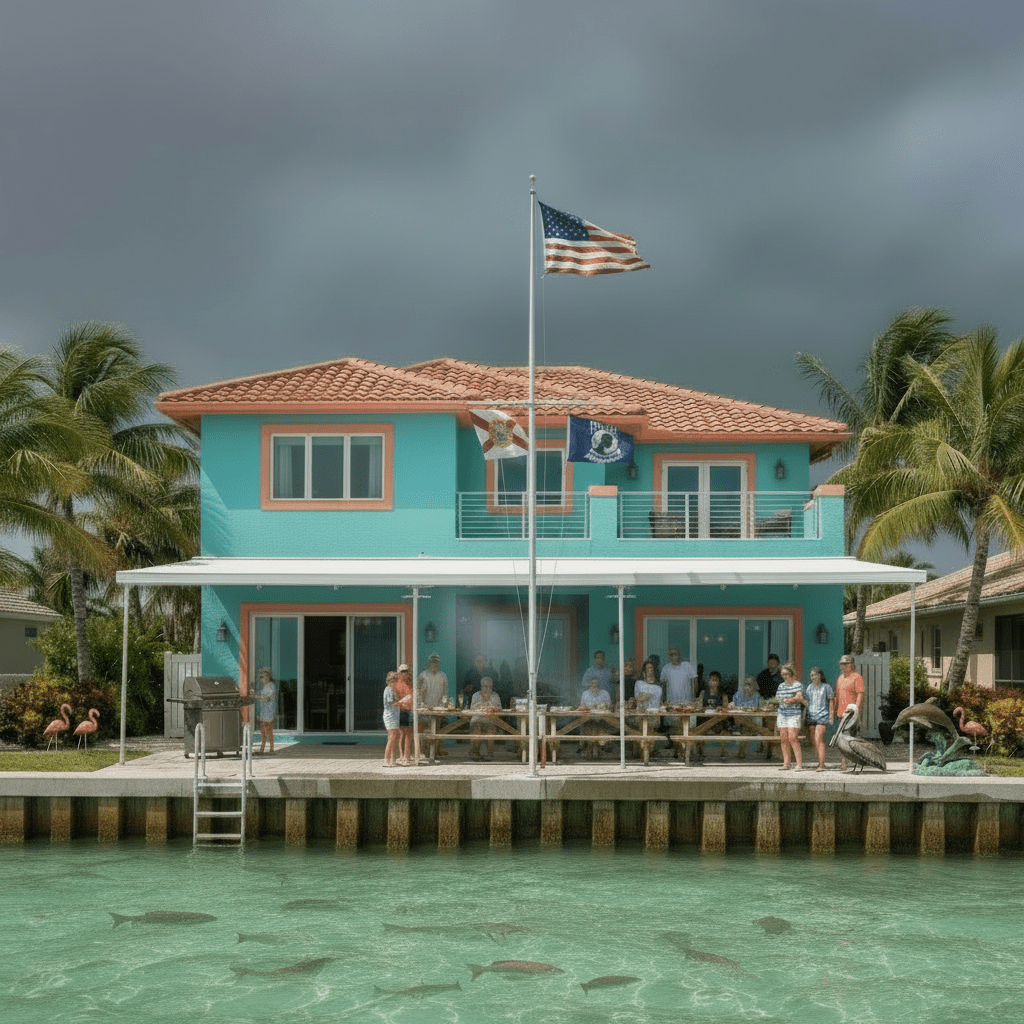

What Makes a Nautical Telescoping Flagpole Distinct?
A nautical telescoping flagpole must account for demanding waterfront conditions, including wind, ultraviolet exposure, moisture, and salt-laden air.
Coastal properties, marine docks, lakefront homes, and seaside boardwalks are regularly exposed to coastal winds, ultraviolet sunlight, moisture, and salt-laden air.
Prolonged salt-air exposure can accelerate oxidation, pitting, discoloration, and wear when materials and maintenance are not suited to coastal conditions.
The nautical systems use the same documented heavy-duty pole profile discussed in this guide and are configured for multi-flag waterfront displays.
These nautical setups include a yardarm crossbar assembly for flying multiple flags, while swivel components and proper rigging help reduce tangling and wrapping.
Whether you display the United States flag above or military service flags on the yardarm, the system is designed to provide a stable, organized multi-flag presentation.
For properties directly on the water facing constant salt air and intense gusts, explore the structural blueprints of our Strongest Nautical Telescoping Flagpoles featuring our signature marine-grade crossbars.
Understanding the 15-Year Manufacturer Pole Warranty
The manufacturer’s written warranty may cover weather damage that makes the aluminum pole tubing inoperable, subject to its registration requirements, terms, exclusions, and claim process.
Registered Heavy-Duty Pole Sections:
15-Year Manufacturer Pole Warranty When Registered Within 45 Days.
Other Parts and Equipment:
Operational parts and included equipment carry separate one-year coverage, subject to the written warranty.
What the Written Pole Warranty Covers
A warranty should be evaluated by its written coverage, registration deadline, exclusions, claim process, and customer responsibilities.
Warranty terms vary widely among flagpole brands, so compare the written documents rather than relying on a headline warranty length.
A heavy-duty pole should combine clearly documented materials and dimensions with correct installation, appropriate flag loading, routine inspection, and transparent warranty terms.
For the systems described here, registering the pole within 45 days extends eligible aluminum pole-section coverage to 15 years; without timely registration, coverage is limited to one year.
Weather damage that makes the aluminum tubing inoperable will qualify for coverage. Replacement-tube shipping is the customer’s responsibility, and all claims remain subject to the written warranty terms.
Flags, lights, ropes, pulleys, clips, toppers, cosmetic discoloration, scratches, theft, accidental damage, and normal wear are excluded. Operational parts carry one-year coverage, and attached equipment must remain within the warranty’s 10-pound limit.
Built for Patriots Who Value Documented Strength
Displaying your colors is a proud, timeless American tradition that deserves high-grade equipment built with real integrity, strength, and structural honor.
Choosing a flagpole by price or appearance alone can overlook the dimensions, materials, included equipment, installation requirements, and warranty terms that affect long-term ownership.
A dependable display begins with documented specifications, correct installation, appropriate flag loading, and realistic expectations for local weather conditions.
With Armor Flagpoles, you can evaluate the documented 10-gauge wall, 3.5-inch Superior 2 base, five-section construction, 7000-T8 aluminum, included equipment, and written warranty before you buy.
Fly your flags with confidence, supported by clear specifications, proper installation, routine inspection, and warranty terms you can read before purchasing.
